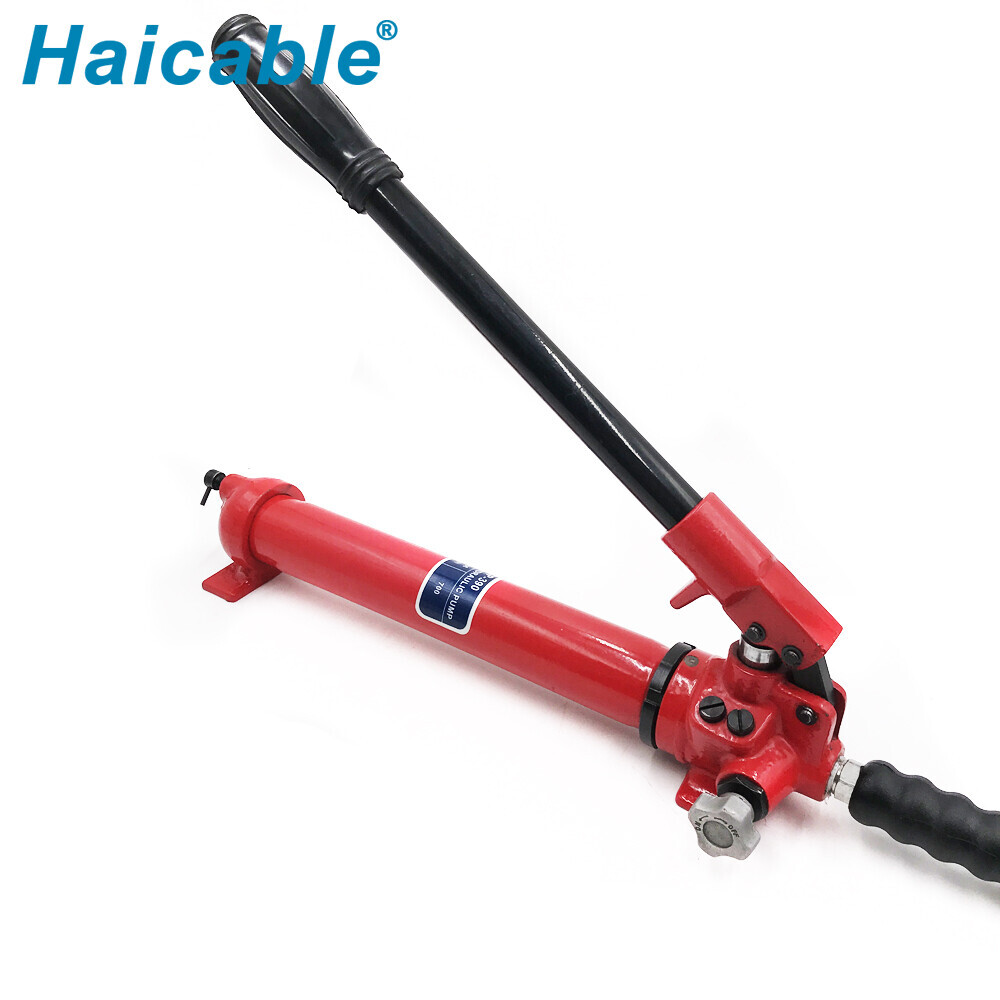

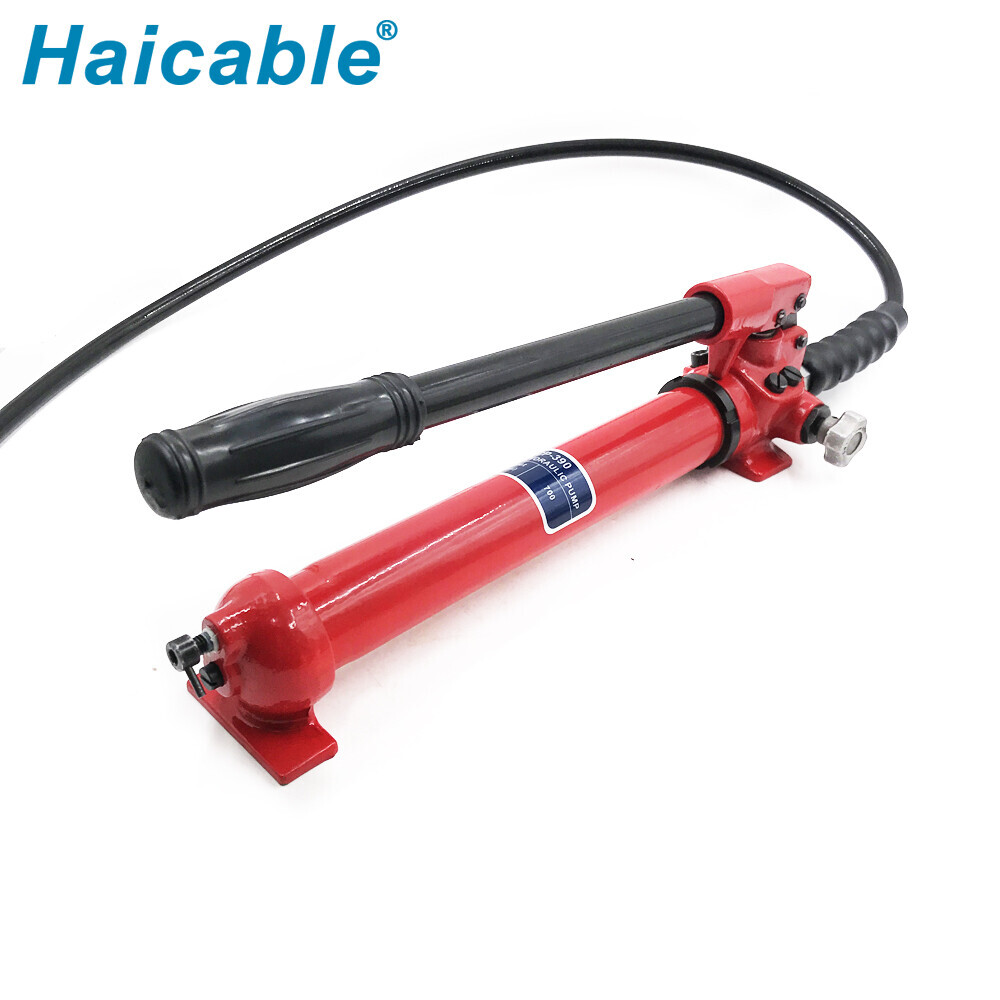

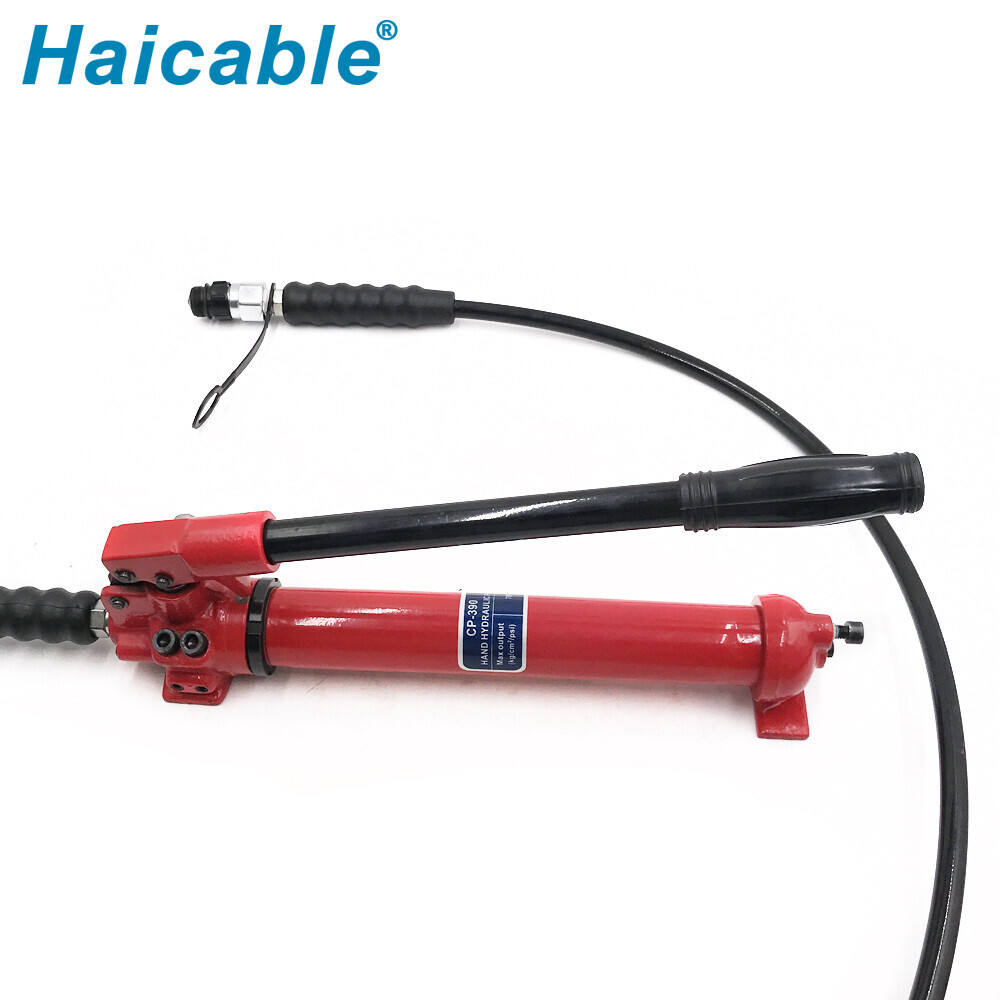

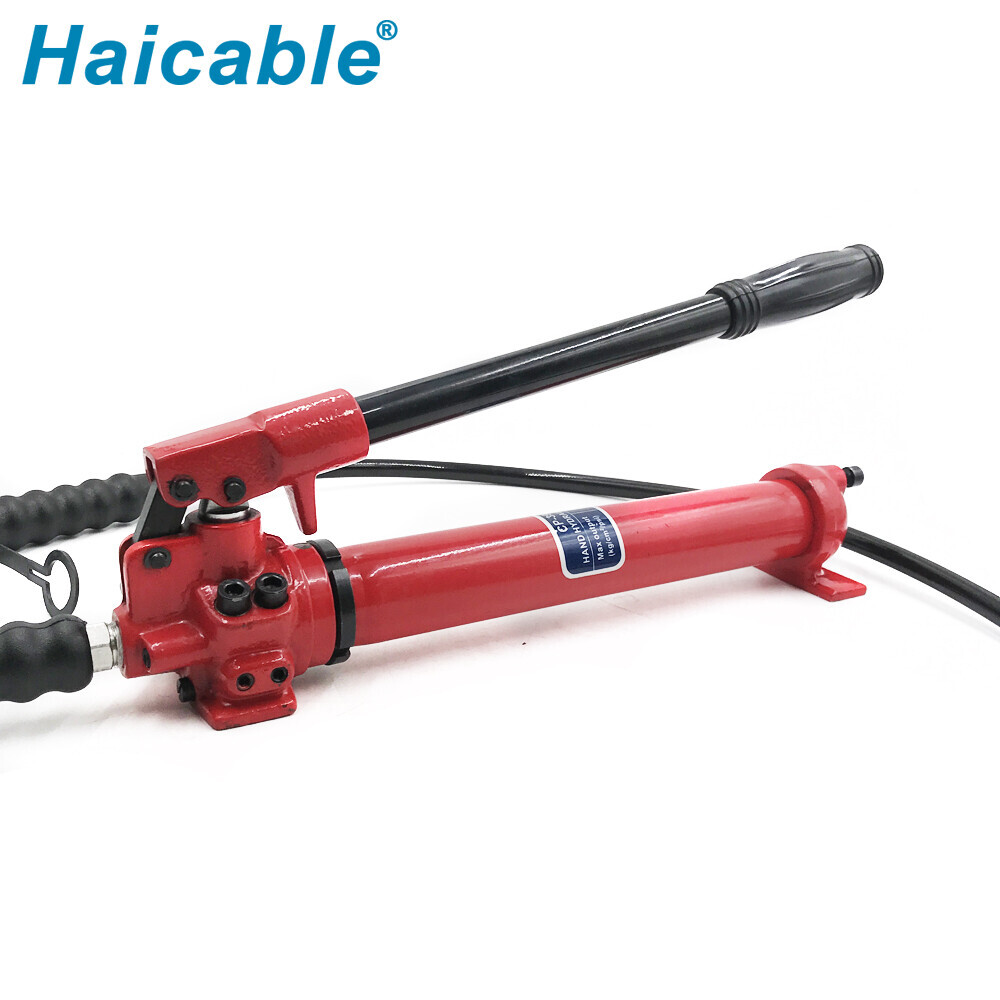

400cc Oil Capacity Hand Hydraulic Pump CP-390
● Hand, Foot, Battery, Electric type
● Connecting to hydraulic crimping and cutting head
● Aluminum-alloy or steel body
Contact Us

Features

• Single-Acting Hand Operated with light weight
• PT3/8” thread quick coupler
• Quick Coupler: For fast connection with compatible tools.
• Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke), and then bulid sufficient working pressure under lost condition (20-700Bar)
• Safety Valve: For safe operation. Automatically relief pressure when rated pressure is reached, protect hydraulic system from over pressure

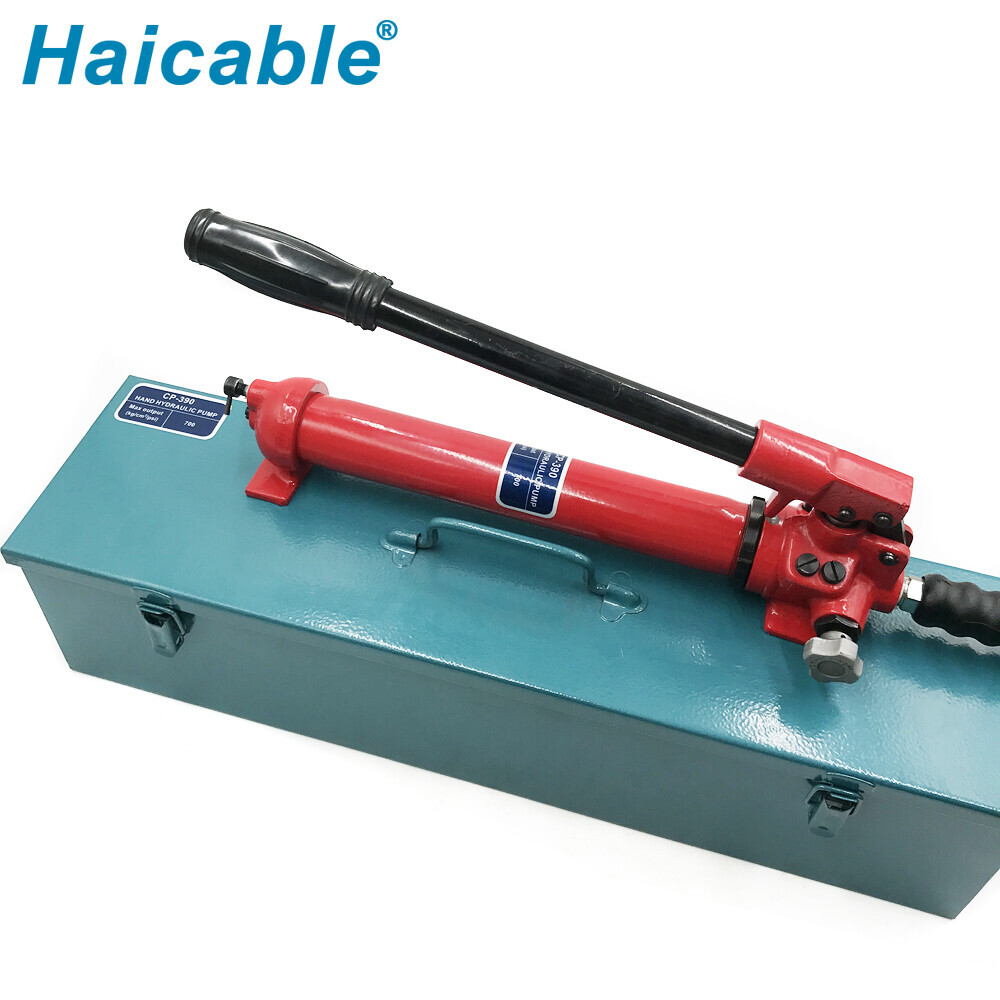

• Packed with Steel Case Package for easy carrying and protect pumps   well during shipping

Video

Parameters

ModelCP-390
Rated Pressure700 Bar
Oil Reservoir400CC
Oil Delivery SpeedLow Pressure 9.8cc/stroke
High Pressure 1.9cc/stroke
Working PressureLow pressure 0-20bar
High Pressure: 20-700bar
Size430*105*160mm
Weight4.6kg
