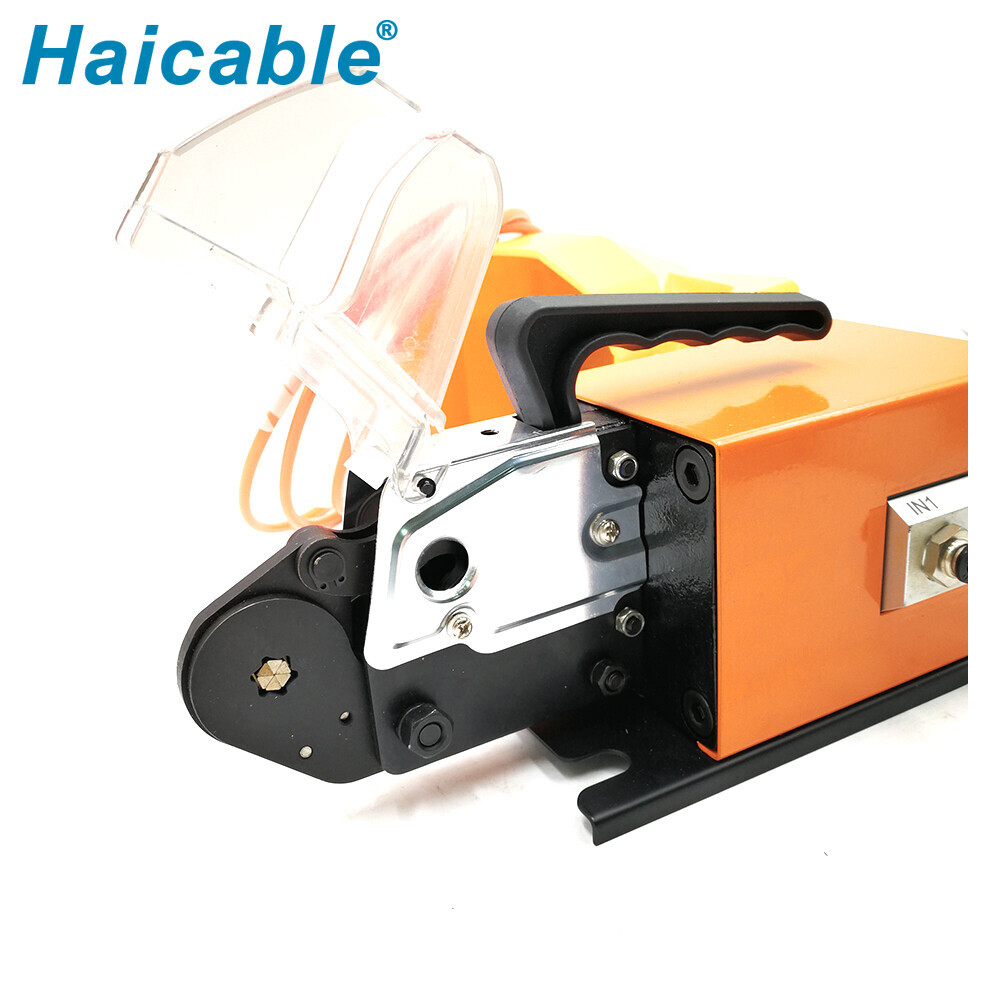

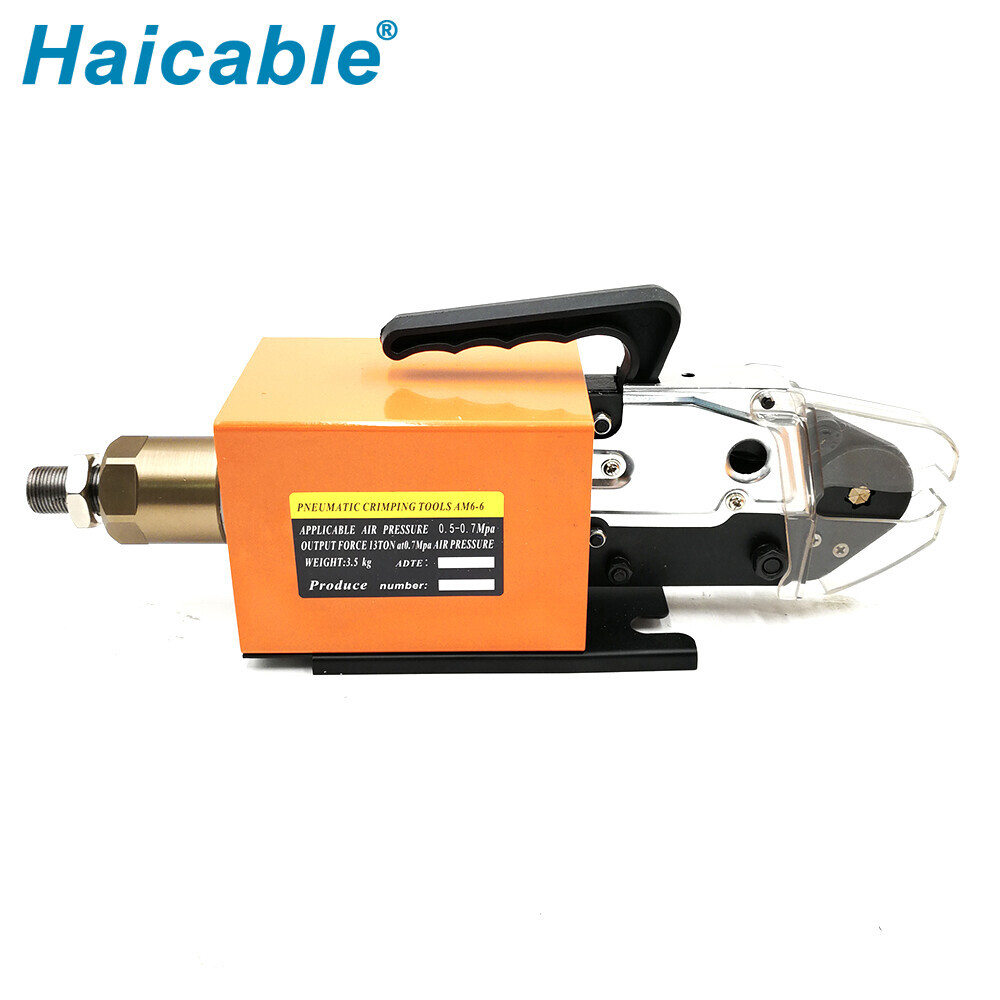

AM6-6 Pneumatic Type Terminal Crimping Machine
The AM6-6 pneumatic terminal crimping machine delivers 1.3T output force for precise cord end sleeves & wire ferrules (0.3-6mm²). Features dual-action cylinder, 0.5-0.8Mpa operation, and compact 3.5kg design.
Contact Us

Features

• The machine is driven by dual-action normal cylinder, which has ad-vantages of high efficiency and quality in crimping force and speed .

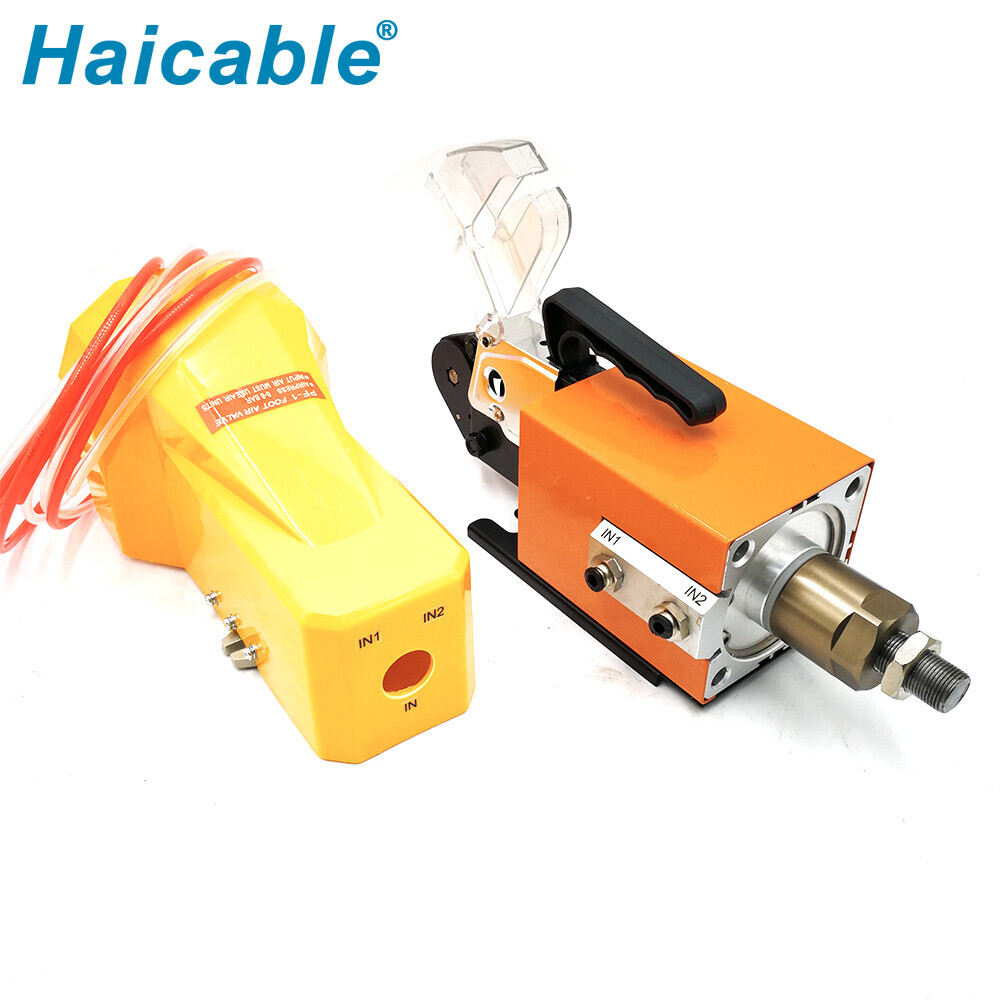

• Accessories : one foot air valve, two air pipes.

• Pack : with corrugated carton

• Weight: 6kg

Video

Parameters

Model No.

AM6-6

Output Force

1.3T air pressure 0.8Mpa

Applicable air pressure

0.5-208Mpa

Ultimate Pressure

1.0Mpa

Terminal TypeCord End Sleeve and Wire Ferrules

Ultimate Pressing Ability

0.3-6mm2

External Dimension

386*142*117mm

Weight

3.5kg


Previous:400cc Oil Capacity Hand Hydraulic Pump CP-390
Next:AM-10 Pneumatic Type Terminal Crimping Machine
