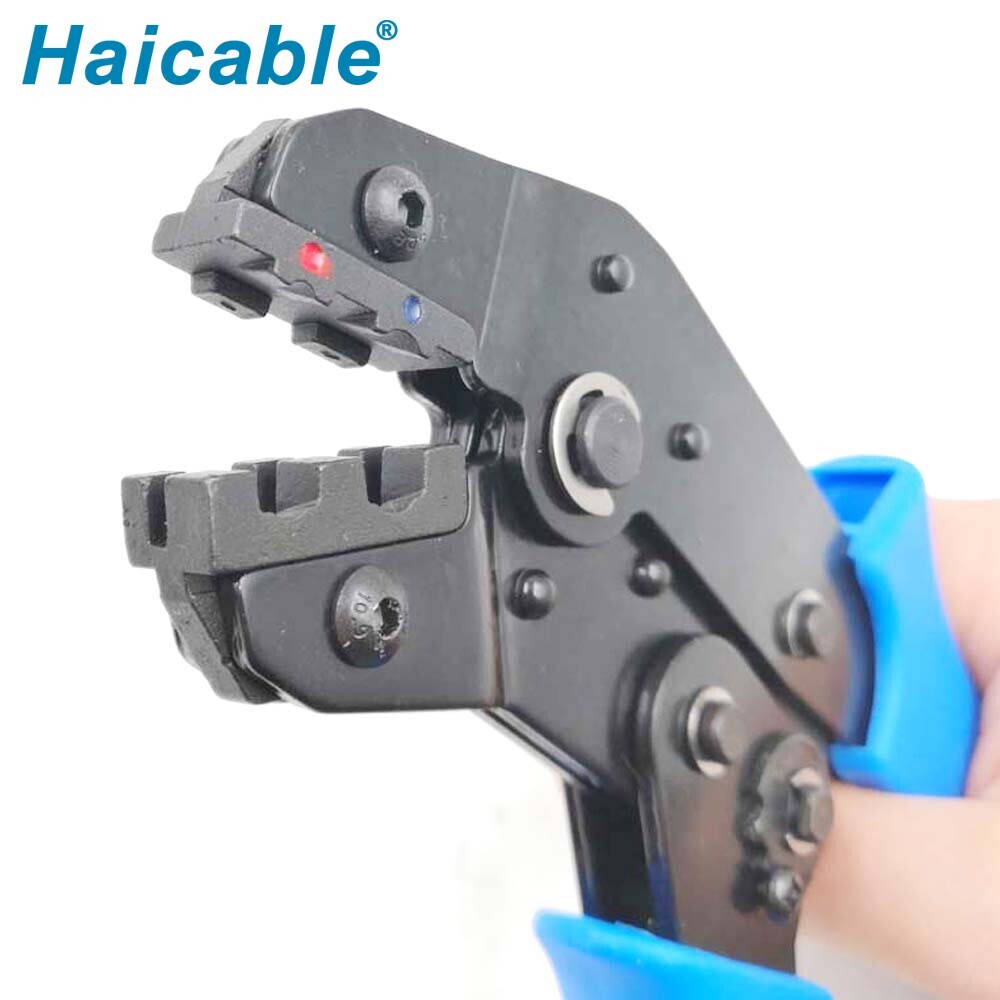

Name: SN Series Ratchet Crimping Tools
SKU: 0

GET A QUOTE







SN Series Ratchet Crimping Tools

• Different kinds of Jaws for choice
• OEM Dies are acceptable
• PP or TPR handles

Features

• There is more than 40 dies could be chosen, And we accept OEM dies

• Following format don't include the terminals, Please check the terminal type with our dies drawing.

• Reduce 50% energy when crimping.

• Precise crimping die sets And integral lock with self-releasing machanism ensure high-quality crimping effect after crimping repeatedly.

• Accurate adjustment before ex works delivery.

• Light And compact structure keep crimping effect.

Video

Parameters

No.	Model no.	Terminals Type	Crimping CSNacity	Size(mm)/Weight(kg)
1	SN-02C	Insulated Terminals And Connector	0.25-2.5mm² 24-14AWG	190/0.35
2	SN-0725	Insulated Terminals And Connector	0.5-2.5mm² 20-14AWG	190/0.35
3.	SN-02	Non-Insulated terminals And Connector	0.25-2.5mm² 24-14AWG	190/0.35
4	SN-0325	Non- Insulated Terminals	0.5-2.5mm² 20-13AWG	190/0.35
5	SN-06	Non Insulated Terminals	0.5-6mm² 20-10AWG	190/0.35
6	SN-02WF	Cable end sleeve	0.14-2.5mm² 26-14AWG	190/0.35
7	SN-06WF	Cable end sleeve	0.25-6mm² 24-10AWG	190/0.35
8	SN-16WF	Cable end sleeve	6-16mm² 10-5AWG	190/0.35
9	SN-02WF2C	Cable end sleeve And Insulated Terminals	0.25-2.5mm²/22-14AWG 0.5-2.5mm²/20-14AWG	190/0.35
10	SN-28B	Uninsulated receptacles And Tab 2.8,4.8mm width terminals	0.1-1.0mm² 28-18AWG	190/0.35
11	SN-48B	Uninsulated receptacles And Tab 4.8mm width terminals	0.5-1.5mm² 20-16AWG	190/0.35
12	SN-11011	Uninsulated receptacles And Tab 6.3mm width terminals	0.5-2.5mm² 20-14AWG	190/0.35
13	SN-03H	Crimping Coaxial Cable	3.25/3.84/4.5 /1.72/1.0mm	190/0.35
14	SN-01BM	D-Sub connector	0.08-0.5mm² 28-20AWG	190/0.35
15	SN-02BM	Micro-Fit 3.0 Connector	0.08-0.5mm² 28-20AWG	190/0.35
16	Sn-03BM	D-Sub connector	0.08-0.14mm² 30-24AWG	190/0.35
17	SN-28FL	Tab 90°flag terminals	2.8mm² 14AWG	190/0.35
18	SN-05B	Terminals	0.5-1.5mm² 20-16AWG	190/0.35
19	SN-2549	Uninsulated receptacles And Tab	0.08-1mm² 28-18AWG	190/0.35
20	SN-10BM	Uninsulated receptacles And Tab	28-26AWG	190/0.35
