LY Series Ratchet Crimping Tools

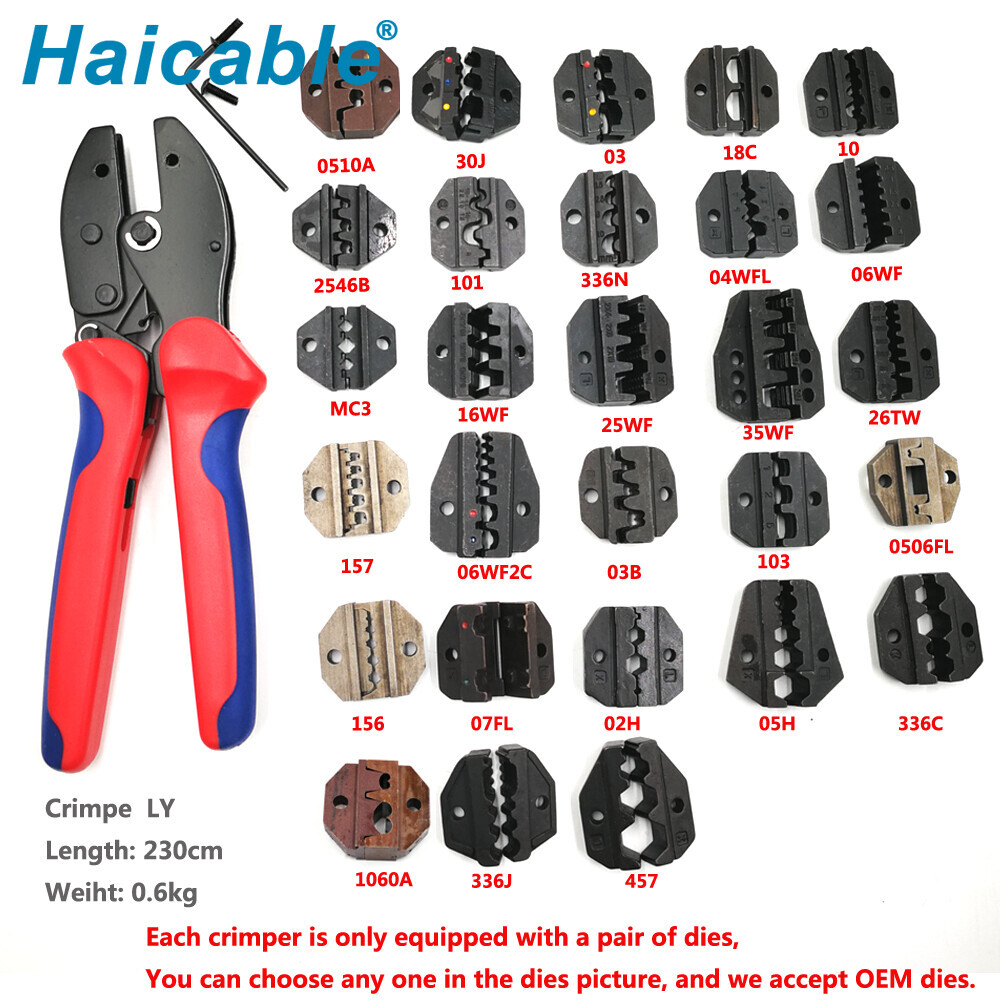

• Different kinds of Jaws for choice
• OEM Dies are acceptable
• PP or TPR handles

Features

• There is more than 40 dies could be chosen, And we accept OEM dies

• Following format don't include the terminals, Please check the terminal type with our dies drawing.

• Reduce 50% energy when crimping.

• Precise crimping die sets And integral lock with self-releasing machanism ensure high-quality crimping effect after crimping repeatedly.

• Accurate adjustment before ex works delivery.

• Light And compact structure keep crimping effect.

Video

Parameters

No.	Model no.	Terminals Type	Crimping Capacity	Size(mm)/Weight(kg)
1	LY-30J	Insulated Terminals And Connector	0.5-1.5mm²/20-16AWG 2.5mm² / 14AWG 4-6mm² / 12-10AWG	230/0.6
2	LY-03C	Insulated Terminals And Connector	0.5-1.5mm2/20-16AWG 2.5mm2 / 14AWG 4-6mm²/ 12-10AWG	230/0.6
3.	LY-18C	Insulated terminals And Connector	10-16mm² / 8-6AWG	230/0.6
4	LY-10	Non Insulated Terminals	1.5-6mm² /17-10AWG	230/0.6
5	LY-101	Non Insulated Terminals	1.0-10mm² /17-10AWG	230/0.6
6	LY-10N	Non Insulated Terminals	0.5-10mm² /20-7AWG	230/0.6
7	LY-04WFL	Cord End Sleeve And Wire Ferrules	1-6mm² / 17-10AWG	230/0.6
8	LY-06WF	Cord End Sleeve And Wire Ferrules	0.5-6mm² / 20-10AWG	230/0.6
9	LY-16WF	Cord End Sleeve And Wire Ferrules	6-16mm² / 10-5AWG	230/0.6
10	LY-25WF	Cord End Sleeve And Wire Ferrules	6-25mm² / 10-3AWG	230/0.6
11	LY-35WF	Cord End Sleeve And Wire Ferrules	10-35mm² / 8-2AWG	230/0.6
12	LY-26TW	Cord End Sleeve And Wire Ferrules	20.5-6mm²/220-10AWG	230/0.6
13	LY-06WF2C	Cord End Sleeve And Insulated terminals	0.5-6mm² /0.5-2.5mm2 20-10AWG/20-14AWG	230/0.6
14	LY-03B	Non-insulated Receptacles And Tab	0.5-6mm² / 20-10AWG	230/0.6
15	LY-103	Wire Joint	0.5-6mm² /20-10AWG	230/0.6
16	LY-0506FL	Non-insulated 90°Flag Terminals	0.5-1.25mm² /1.5-2.5mm² 20-18AWG /16-14AWG	230/0.6
17	LY-07FL	Insulated 90°Flag Terminals	0.5-1.25mm² /1.5-2.5mm² 20-18AWG /16-14AWG	230/0.6
18	LY-02H	Coaxial cable	6.5mm/5.4mm/1.72mm RG59/62	230/0.6
19	LY-05H	Coaxial cable	8.1/6.5/5.4/2.6/1.72mm RG58/59/62	230/0.6
20	LY-336C	Coaxial cable	1.73/5.41/8.10mm RG58/59/62/6	230/0.6
21	LY-336J	Coaxial cable	1.07/1.72/1.98/3.25/3.84/4.52MM RG174,179,Fiber Optic	230/0.6
22	LY-457	Coaxial cable	11/8.2/5.4MM RG58/6	230/0.6
23	LY-157	Airlines of Turned contact plugs	0.5-6 mm²/20-10AWG	230/0.6
24	LY-158	Airlines of Turned contact plugs	2.5-4-6mm²/13-10AWG	230/0.6
25	LY-2048	Spark Plug Terminals	8.5mm	230/0.6
26	LY-0822	Heat Terminal	0.34-10mm² / 22-8 AWG	230/0.6
27	LY-2546B	Solar PV Connector	MC4 2.5 4 6 mm²	230/0.6
