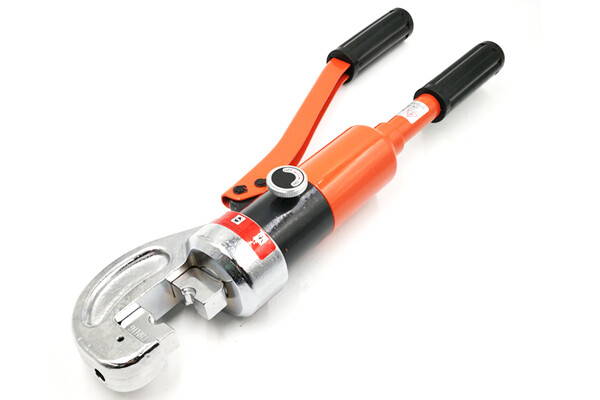

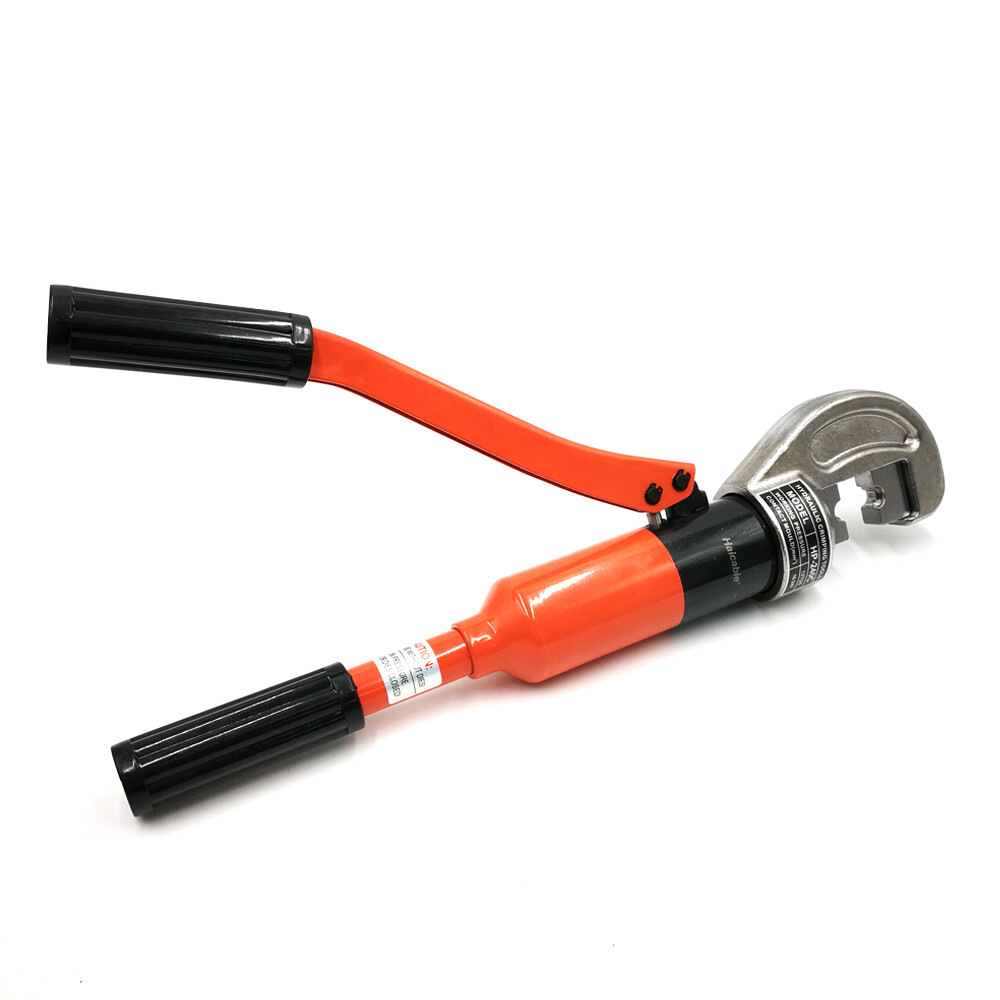

Hydraulic Swager Tool 13T HW-13C
●Heavy Duty Hydraulic Swager Tool
●Stainless steel ferrules crimping available
●Hex Dies and Round Dies could be chosen
Contact Us

Features

•Hex Dies for Swaging oval ferrules,crimping Cu/Al ferrules.

•Hex Dies for Swaging stainless steel wire rope from 2.0-5.0mm

•Round Dies for swaging Oval swages(up to 9mm)

• Dies could be OEM as per different terminals sizes.
• C shape head design for convenient operation.
• Head could be rotated 180 degree. For flexible operation in confined place.
• Tools are set by double speed. Quick speed while dies have not connected with lug, Slow speed while dies touched lug. Two speed for save your labor and time.
• Fitted with safety valve. When pressure reach to limited max pressure,s afety-value will release pressure automatically, which prevent over pressure.
• Standard dies:16 25 35 50 70 95 120 150 185 240
• Plastic case package is for easy carrying and well tool protection


Video

Parameters

ModelHW-13C
Terminal TypeOval ferrules,Stainless steel fitting
Crimping Capacity16 25 35 50 70 95 120 150 185 240 mm
Output13 T
Ram Stroke25 mm
Length505mm
Weight4.8kg
