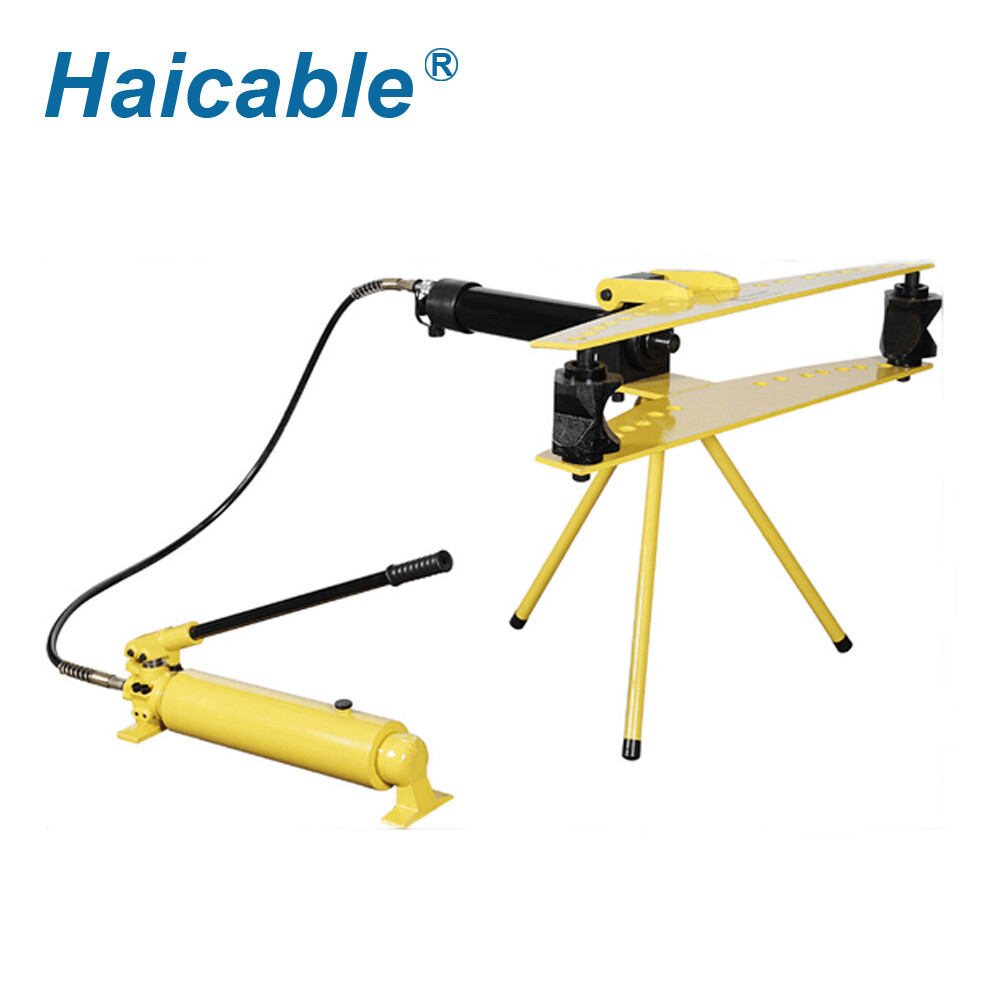

Pipe Benders HSW-2F/3F/4F
● Ergonomic & Durable
● Versatile Bending Capabilities
● Time & Effort Saving
Contact Us

Features

• Capable of bending angles form 0 degree to 90degree on pipes ranging from 1/2” to 4”

• Cold bending, no pre-warming of pipe is required

• Works quicker with the two speed,heavy-duty hydraulic pumping system

• Comportable working position with the tripod stand

• Longer piston stroke per pumping and optimized hand force minimizes operator fatigue

• Supplied in a wooden case with a set of bending shoes and service pack

Video

Parameters

ModelOutput(T)Pipe Wall ThicknessRam Stroke(mm)Bending Range(O.D.)Bending Shoes(inch)G.w.(kg)Packing Size(cm)
HSW-2F132.75-4.5 mm250ф21.3-60 mm1/2” 3/4” 1” 1-1/4” 1-1/2” 2”5077*32*20
HSW-3F202.75-5 mm290ф21.3-88.5 mm1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 3”10094*40*21
HSW-4F202.75-6mm370ф21.3-108 mm1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 3” 4”157118*46*25
