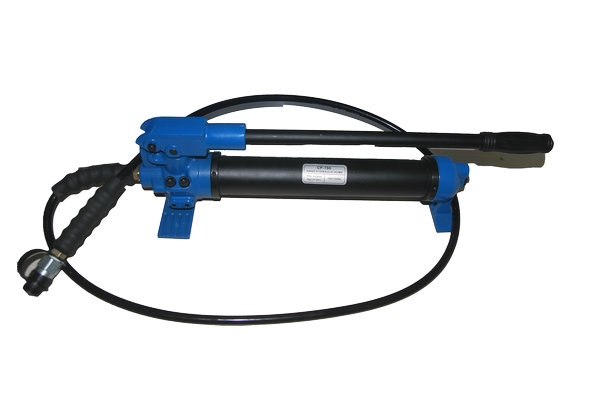

900cc Oil Capacity Hand Hydraulic Pump CP-700
● Hand, Foot, Battery, Electric type
● Connecting to hydraulic crimping and cutting head
● Aluminum-alloy or steel body
Contact Us

Features

• Single-Acting Hand Operated
• PT3/8” thread quick coupler
• High pressure Oil pipe supplied
• Large Oil Reservoir: Able to supply sufficient oil to heavy duty tools
• Quick Coupler: For fast connection with compatible tools.
• Double Speed Unit equipped for quick operation. Which allow quick oil delivery under no load condition (12.26cc/stroke), and then bulid sufficient working pressure under lost condition (20-700bar)
• Safety Valve: For safe operation, automatically relief pressure when rated pressure is reached, protect hydraulic system from over pressure
• Packed with Steel Case Package for easy carrying and protect pumps well during shipping

Video

Parameters

ModelCP-700
Rated Pressure700 Bar
Oil Reservoir900CC
Oil Delivery SpeedLow Pressure 12.26cc/stroke
High Pressure 2.26cc/stroke
Working PressureLow pressure 0-20bar
High Pressure: 20-700bar
Size510*100*150mm
Weight9.2kg
