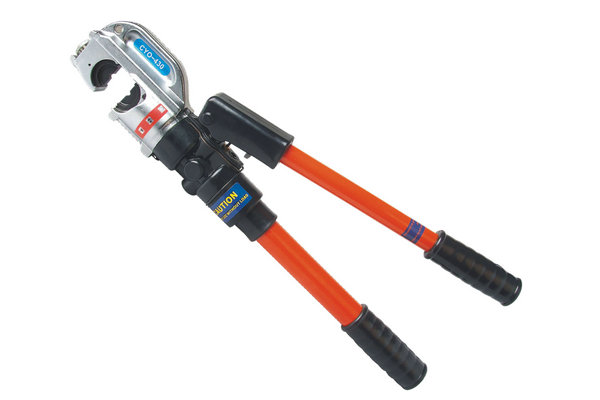

50-400mm² Cable Connector Hydraulic Crimping Tool CYO-430
● Forging head proceeding
● Energy and wind application
● Aluminum-alloy or steel body
● Special purpose dies available
Contact Us

Features

• Hexagon crimping type for cable lug,wire clamp, pipe with hexagon dies or other dies for crimper
• Tools released by twisting and fully closing pump handles, which handles are fiber glass materials.
• C-shape head design for convenient operation.
• Head could be rotated 180 degree. Free for narrow space working.
• Tools are set by double speed. Quick speed while dies have not connected with lug. Slow speed while dies touched lug. Two speed for save your labor and time.
• Fitted with safety valve. When pressure reach to limited max pressure, safety-value will release pressure automatically, which prevent over pressure.
• Standard dies include 50 70 95 120 150 185 240 300 400mm²
• Dies could be OEM
• Plastic case package is for easy carrying and well tool protection

Video

Parameters

ModelCYO-430
Terminal TypeCable Lug or Connector
Crimping Capacity50 70 95 120 150 185 240 300 400mm²
Output12 T
Ram Stroke30 mm
Length620 mm
Weight6.5 kg
