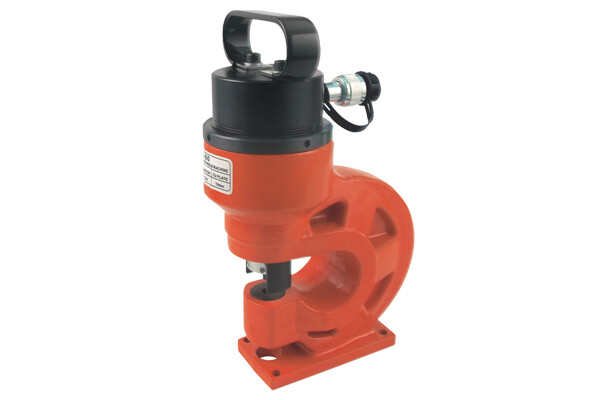

Thickness 10mm Bus Bar Hydraulic Puncher CH-60
● Busbar tool for different thickness
● Hydraulic or electric type
Contact Us

Features

• Single action.
• Remote control style: works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot hand and electric hydraulic pumps are all available in our products range.
• 4 Pairs standard punching dies: for precise punching, select proper dies accoding to application.
• Dies size: Φ11.1mm Φ14.3mm Φ17.5mm Φ20.6mm (round dies).
• Punching dies customization is available if samples and drawings can be provided.
• Wooden case package: protect tools well


Video

Parameters

ModelCH-60
Mild steel plateMax thickness 6mm
Cu/Al BusbarMax thickness 10mm
Output31 T
Throat Depth70mm
Punching DiesΦ11.1mm Φ14.3mm Φ17.5mm Φ20.6mm (round dies)
Size350*245*110
Weight22kg
