  • 3 In 1 Hydraulic Bus Bar Tool HB-200W

›

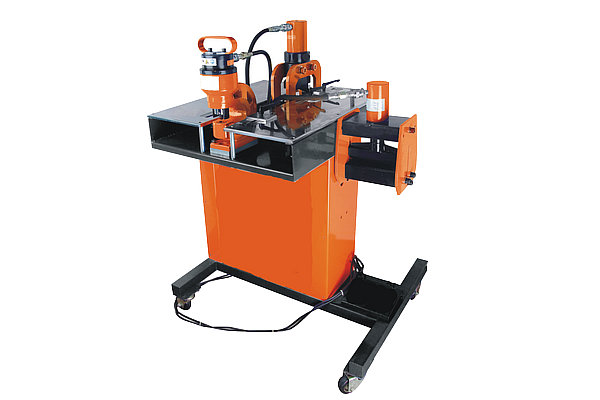

3 In 1 Hydraulic Bus Bar Tool HB-200W
● Busbar tool for different thickness
● Hydraulic or electric type
Contact Us

Features

• Single action.

• 3 in 1 cutting bending punching bus bar.

• Robust and stiff frame, strong structure.

• High quality cutting, bending and punching, fast cycle time.

• High operating safety with built-in safety-system.

• With the help of hydraulic power, easy and quick operation can be achieved.

• Include: CB-200A, CH-70, CWC-200 and EHP-63A.

Video

Parameters

ModelHB-200W
Max Cutting Capacity200*12mm
Max Punching CapacityΦ11.1mm-Φ20.6mm
Thickness 12mm
Max Bending Capacity200*12mm
Power220V/50HZ
Rated Pressure700kg/cm2 (10000psi)
Punching DiesΦ11.1mm Φ14.3mm Φ17.5mm Φ20.6mm (Round Dies)
Size900*660*1220mm
Weight170kg
