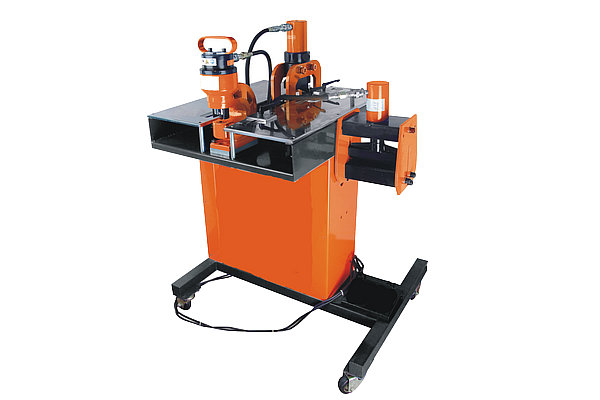

3 In 1 Hydraulic Bus Bar Tool HB-150W
● Busbar tool for different thickness
● Hydraulic or electric type
Contact Us

Features

• Single action.
• 3 in 1 cutting bending punching bus bar.
• Robust and stiff frame, strong structure.
• High quality cutting, bending and punching, fast cycle time.
• High operating safety with built-in safety-system.
• With the help of hydraulic power, easy and quick operation can be achieved.
• Include: CB-200A, CH-60, CWC-150 and EHP-63A.


Video

Parameters

ModelHB-150W
Max Cutting Capacity150*10mm
Max Punching CapacityΦ11.1mm-Φ20.6mm Thickness 10mm
Max Bending Capacity150*10mm
Power220V/50HZ
Rated Pressure700kg/cm² (10000psi)
Punching DiesΦ11.1mm Φ14.3mm Φ17.5mm Φ20.6mm (Round Dies)
Size900*660*1220mm
Weight170kg
