Features:

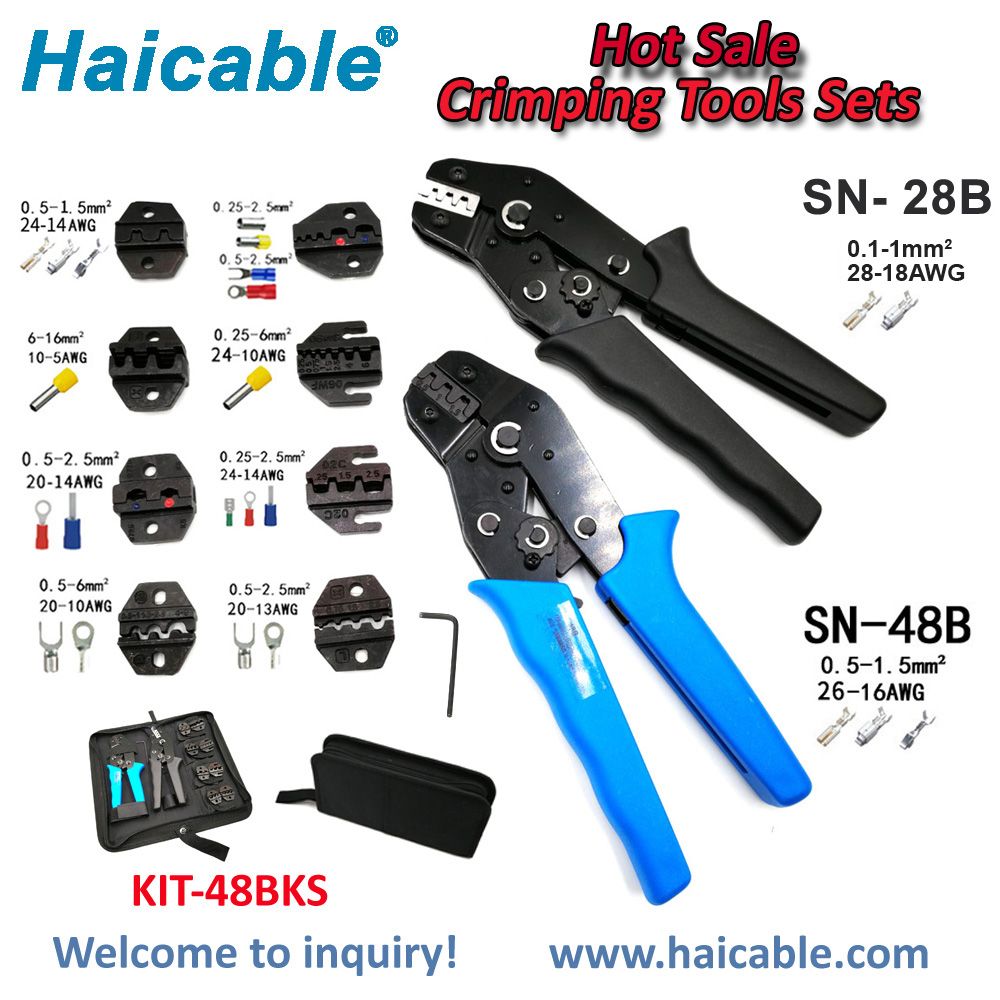

Model No: KIT-48BKS
Crimping range:
SN-28B:
Uninsulated receptacles And Tab2.8,4.8mm width terminals, 0.1-1.0mm² / 28-18AWG
SN-48B:
Uninsulated receptacles And Tab 4.8mm width terminals, 0.14-1.5mm² / 26-16AWG
8 pairs of dies:
SN-02WF2C: Insulated Terminals 0.25-2.5mm² / 22-14AWG Connector 0.5-2.5mm² / 20-14AWG
SN-11011: Uninsulated receptacles And Tab 6.3mm width terminals 0.5-2.5mm²/24-14AWG
SN-06WF : Cable end sleeve 0.25-6mm² / 30-10AWG
SN-16WF：Cable end sleeve 6-16mm² / 10-5AWG
SN-02C：Insulated Terminals And Connector 0.25mm²_2.5mm²/24AWG-14AWG
SN-0725: Insulated Terminals And Connector 0.5-mm²_2.5mm²/20-14AWG
SN-06: Non Insulated Terminals 0.5-6mm²/20-10AWG
SN-0325: Non- Insulated Terminals 0.5-mm²_2.5mm²/20-13AWG
