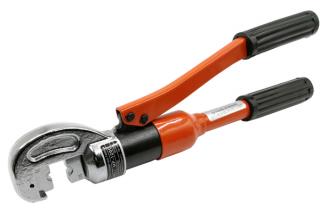

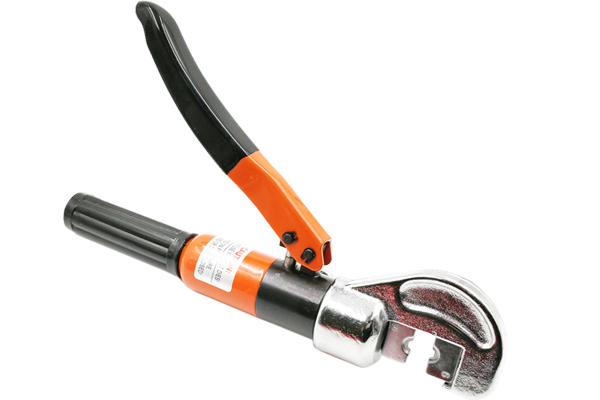

Max Φ5mm Wire Rope Hydraulic Crimping Tool HP-70CW
Max Φ5mm Wire Rope Hydraulic Crimping Tool HP-70CW
Catalogue Download

Feature
• Hexagon /round crimping type for swaging or fishing terminals.
• Dies could be OEM as per different terminals sizes, like round is welcome too.
• C shape head design for convenient operation.
• Head could be rotated 180 degree. For flexible operation in confined place.
• Fitted with safety valve. When pressure reach to limited max pressure, safety-value will release pressure automatically, which prevent over pressure.

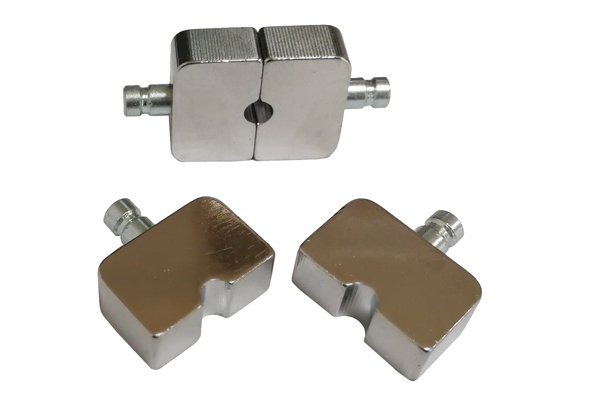

• Standard nine set of dies, include 4 6 10 16 35 50 70


Parameters
Model HP-70CW

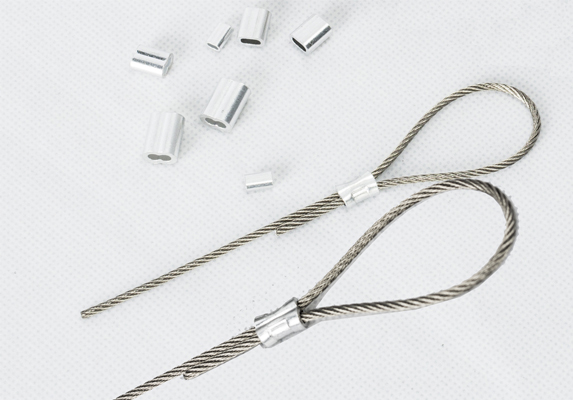

Terminal Type wire rope fishing/swaging terminals
Crimping Capacity Steel wire ropes Φ1-5mm
Output 5 T
Ram Stroke 12 mm
Length/Weight 305mm /1.6kg


Application
Our cable crimper mainly used for electrical working, State Grid construction, underground cable construction, Building construction etc.
