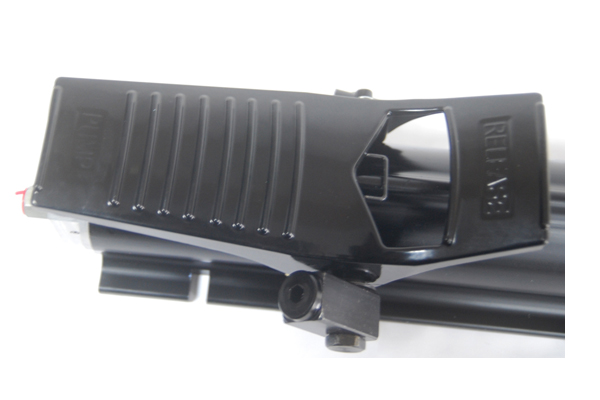

490cc Oil Capacity Air Hydraulic Pump EPC-200
Feature
• Single-Acting
• Foot pump
• Consists of an in-line air and hydraulic
• Use hydraulic equipment in normal operating temperatures. Do not use equipment in temperatures of 65 ℃ (150℉) or higher. Overheating will soften seals and weakens hose material, resulting in oil leaking or other equipment failure.
Parameters
Application
The pump main used where air is the preferred energy source or where electricity is not available, Ideal for use in petrochemical, mines or other inflammable or explosive environments.
• Single-Acting
• Foot pump
• Consists of an in-line air and hydraulic
• Use hydraulic equipment in normal operating temperatures. Do not use equipment in temperatures of 65 ℃ (150℉) or higher. Overheating will soften seals and weakens hose material, resulting in oil leaking or other equipment failure.
Parameters
| Model | EPC-200 |
|---|---|
| Rated Pressure | 700 Bar |
| Oil Reservoir | 490cc/ 98in3 |
| Air Pressure | 90-145PSI |
| Air Volume | 11CFM |
| Valve Fuction | 2W/2P |
| Size | 449*155*145mm |
| Weight | 5.8 kg/13lbs |
Application
The pump main used where air is the preferred energy source or where electricity is not available, Ideal for use in petrochemical, mines or other inflammable or explosive environments.
