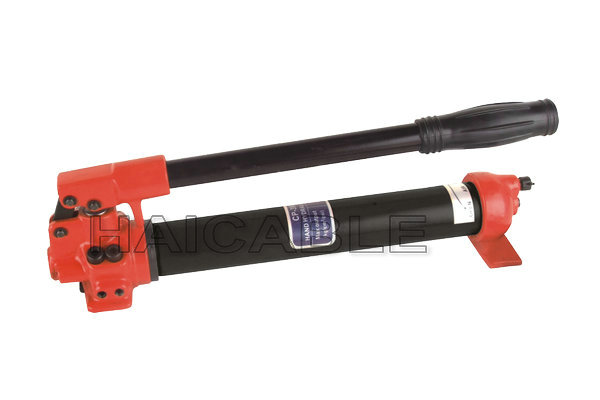

400cc Oil Capacity Hand Hydraulic Pump CP-390
Feature
• Single-Acting Hand Operated with light weight
• PT3/8” thread quick coupler
• Quick Coupler: For fast connection with compatible tools.
• Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke), and then bulid sufficient working pressure under lost condition (20-700Bar)
• Safety Valve: For safe operation. Automatically relief pressure when rated pressure is reached, protect hydraulic system from over pressure
• Packed with Steel Case Package for easy carrying and protect pumps well during shipping
Parameters
Application
The pump main matched with hydraulic head, punching driver or cylinder for support bridge construction, electrical working, State Grid construction, underground cable construction, Building construction etc.
• Single-Acting Hand Operated with light weight
• PT3/8” thread quick coupler
• Quick Coupler: For fast connection with compatible tools.
• Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke), and then bulid sufficient working pressure under lost condition (20-700Bar)
• Safety Valve: For safe operation. Automatically relief pressure when rated pressure is reached, protect hydraulic system from over pressure
• Packed with Steel Case Package for easy carrying and protect pumps well during shipping
Parameters
| Model | CP-390 |
|---|---|
| Rated Pressure | 700 Bar |
| Oil Reservoir | 400CC |
| Oil Delivery Speed |
Low Pressure 9.8cc/stroke High Pressure 1.9cc/stroke |
| Working Pressure |
Low pressure 0-20bar High Pressure: 20-700bar |
| Size | 430*105*160mm |
| Weight | 4.6kg |
Application
The pump main matched with hydraulic head, punching driver or cylinder for support bridge construction, electrical working, State Grid construction, underground cable construction, Building construction etc.
