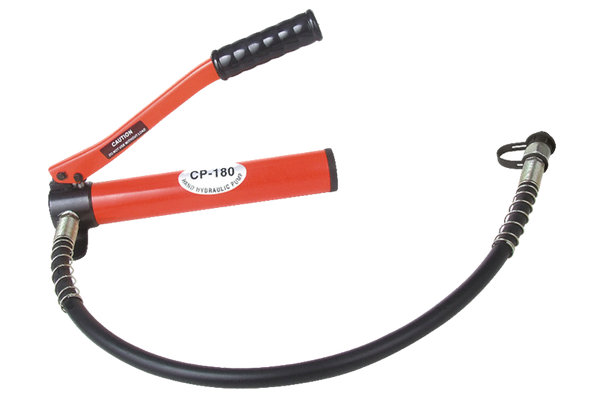

180cc Oil Capacity Hand Hydraulic Pump CP-180
Feature
• Single-Acting Hand Operated
• PT3/8” thread quick coupler
• Light weight
• Application: Supply pressurized oil to Punch Driver SKP-8 SKP-15
• Packed with Steel Case Package for easy carrying and protect • well during shipping
Parameters
Application
The pump main matched with hydraulic head, punching driver or cylinder for support bridge construction, electrical working, State Grid construction, underground cable construction, Building construction etc.
• Single-Acting Hand Operated
• PT3/8” thread quick coupler
• Light weight
• Application: Supply pressurized oil to Punch Driver SKP-8 SKP-15
• Packed with Steel Case Package for easy carrying and protect • well during shipping
Parameters
| Model | CP-180 |
|---|---|
| Rated Pressure | 700 Bar |
| Oil Reservoir | 900CC |
| Oil Delivery Speed |
Low Pressure 9.8cc/stroke High Pressure 1.9cc/stroke |
| Working Pressure |
Low pressure 0-20bar High Pressure: 20-700bar |
| Size | 340*130*100mm |
| Weight | 3.6kg |
Application
The pump main matched with hydraulic head, punching driver or cylinder for support bridge construction, electrical working, State Grid construction, underground cable construction, Building construction etc.
